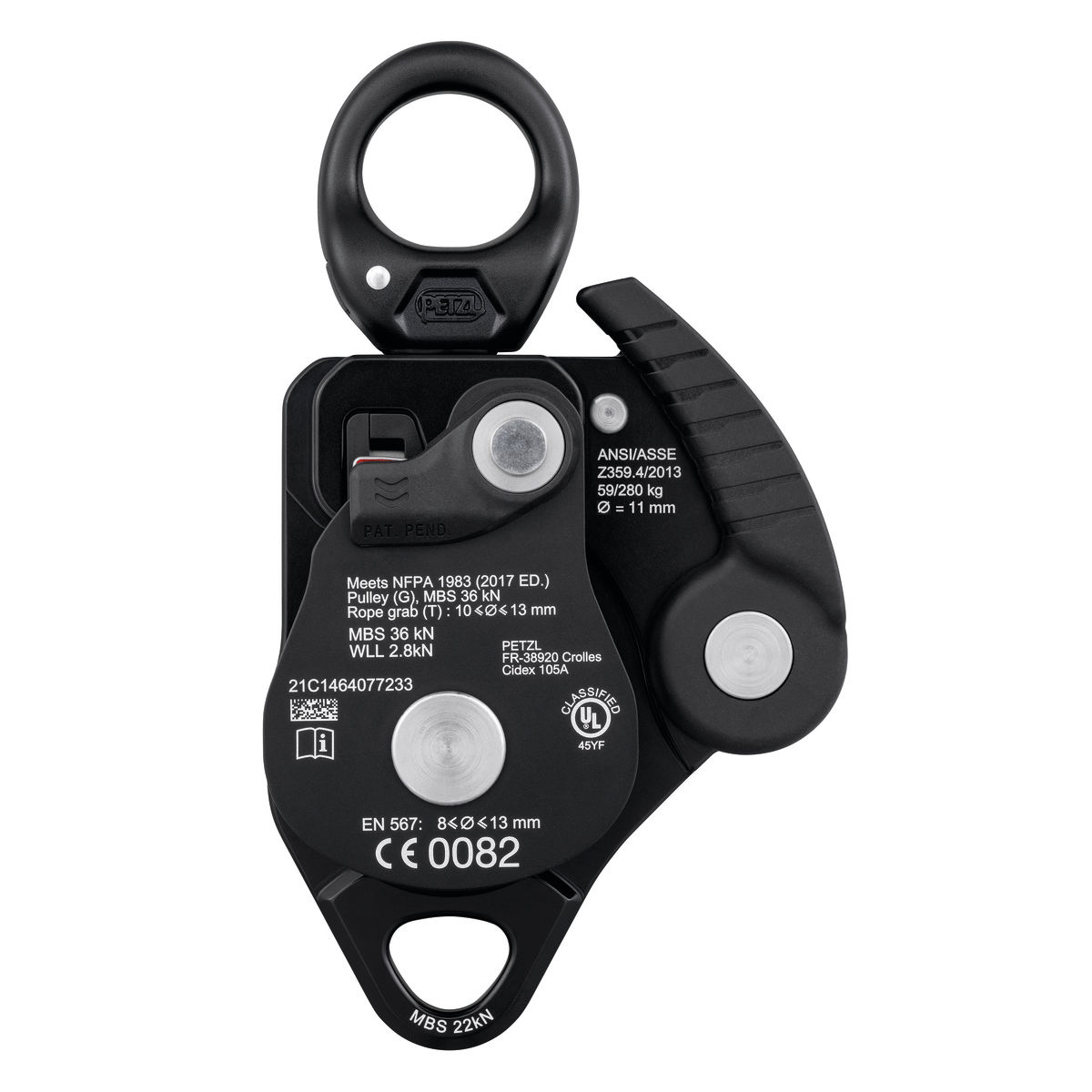

Petzl TWIN RELEASE Double Progress Capture Pulley

Petzl TWIN RELEASE Double Progress Capture Pulley

An ergonomic handle releases the cam. This integrated brake offers extra stopping power and better control when you lower heavy loads. The main faceted sheave rotates one way for extra braking.

The two sheaves deliver excellent hauling efficiency. Furthermore, the swivel facilitates operations. This allows you to orient the pulley under load for direct connections.

Double Progress Capture Pulley

The handle allows you to easily release the cam.

• The ergonomic handle allows easy cam release.
• An integrated brake offers precise control when lowering heavy loads.
• You can lock the cam open to easily feed slack rope.
• The toothless cam preserves the rope and simplifies changeovers.

Optimized Efficiency

This design optimizes efficiency for 4:1 haul systems.

• A large sheave on sealed ball bearings gives excellent hauling efficiency.
• The main faceted sheave provides excellent hauling and extra lowering control.
• Parallel sheaves and an attachment point allow complex system setups.

Simple Use

You can quickly open the moving side plates with a triple-action mechanism, even while wearing gloves.

• Red indicators visually warn you when side plates are unlocked.
• You can install the rope while the device remains connected to the anchor.
• A handle hole allows you to install a remote control cord.

Operational Swivel

The swivel facilitates operations under various conditions.

• It allows you to orient the pulley while under load.
• The swivel accommodates up to three different carabiners.
• The swivel and auxiliary point allow you to use ropes or slings for rigging.

Petzl TWIN RELEASE Double Progress Capture Pulley Specifications

• SKU: P001DA00
• Weight: 800 g
• Material(s): Aluminum, stainless steel, nylon
• Certification(s): CE EN 567, CE EN 12278 partial*, NFPA 2500 Pulley General Use, NFPA 2500 Rope Grab Technical Use, UKCA * Meets performance requirements of the EN 12278 standard
• System Certification(s): ANSI Z359.4 Synthetic Rope Tackle Block (more information in the Instructions for Use)
• Min. rope diameter: 8 mm
• Max. rope diameter: 13 mm
• Sheave type: Sealed ball bearings
• Faceted Sheave Diameter: 40 mm
• Sheave diameter: 38 mm
• Efficiency: 95 %
• Maximum Working Load: 280 kg (more information in the Instructions for Use and in the technical tips at www.petzl.com)
• Maximum working load of the auxiliary attachment point: 22 kN
• Breaking strength: 36 kN
