Harken LOKHEAD WINCH STANDARD KIT (CE CERTIFIED)

$3,800.00

The innovative LokHead winch is a portable or fix-mounted load-lifting, personnel-hoisting winch used with an unlimited length of fiber rope.

SKU: INLH500KIT Categories: , , Brand:

Description

Harken Lokhead Winch Standard Kit (CE CERTIFIED)

The LokHead winch’s captive head allows for a safe and secure rope system, preventing accidental release. This makes it perfect for both fixed or temporary setups, as well as critical rescue operations. To ensure you have everything you need, Harken Safety & Rescue offers the LokHead and its accessories fully contained in a heavy-duty storage case. This case allows for safe transport and rapid deployment to any worksite.

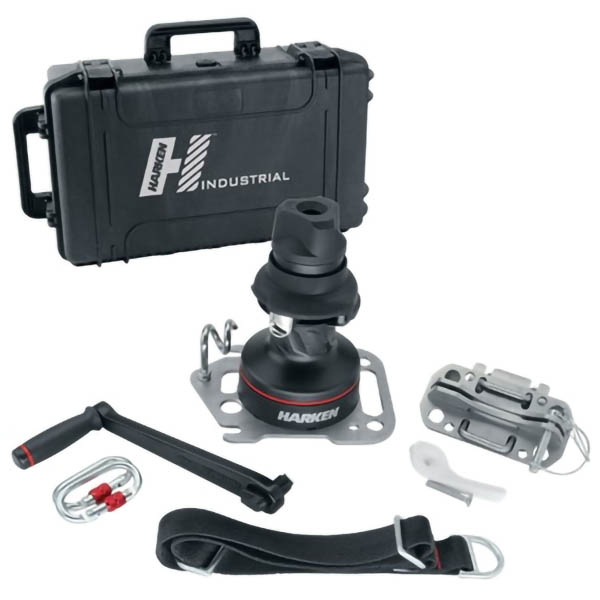

The standard kit includes a reversible plate, a winch handle, a universal tripod adapter, and a control lever. You also get two carabiners, a waterproof case, and an anchor strap with connectors. These components give you many mounting options. You can clamp the winch to tripods, rig it to ropes or straps, or anchor it directly to a structure. This incredible versatility means you can adapt to almost any situation. The winch is also very easy to maintain. It requires no lubrication and you can simply flush it clean with fresh water. You can also get spare parts from any Harken Safety & Rescue dealer, which ensures a longer life for your equipment.

Harken Lokhead Winch Standard Kit (CE CERTIFIED) Specification

The winch kit is compliant with EN1496:2017/A and EN341:2011/2A for Human Suspension and certified under EN13157 Machinery Directive for lifting goods and equipment.

Weight (kg) 13.6 kg
Weight (lb) 30 lb
Minimum line Ø (mm) 10 mm
Minimum line Ø (in) 3/8 in
Maximum line Ø (mm) 12.7 mm
Maximum line Ø (in) 1/2 in
Weight of winch (lb) 12.3 lb
Weight of winch (kg) 5.6 kg
Maximum working load for goods/equipment (kN) 4.9 kN
Maximum working load for goods/equipment (kg) 500 kg
Maximum working load for goods/equipment (lb) 1102 lb
Maximum working load for human suspension (kN) 2.4 kN
Maximum working load for human suspension (kg) 240 kg
Maximum working load for human suspension (lb) 529 lb
Power ratio with 254 mm/10″ winch handle 13.5:1/39.9:1

Additional information

Weight 30 lbs
