CMC Rescue Pulleys
Price range: $89.00 through $139.00
Note: The color of the Single and Double Rescue Pulley are changing from red to black. This is only a change in color, and the specs and performance remain the same.
This lightweight, full-strength, Prusik-minding pulley is ideal for mountain rescue, swiftwater, or other technical teams where equipment weight is a significant consideration.
Description
CMC Rescue Pulleys
By machining the side plates, the thickness of the metal can be varied to maximize the strength-to-weight ratio, a process that cannot be done with traditional bent metal side plates. Sealed ball bearings provide high efficiency, and aluminum side plates protect the rope. An extremely low-profile stainless steel axle assembly reduces snagging on rocks, roots, and uneven surfaces. Designed for lifeline up to 1/2 inch (13 mm) in diameter. Available in Single or Double versions.
Do not load only a single side of a double sheave pulley.
CMC Rescue Pulleys Specifications
| Option | Item | TYPE | WEIGHT | SHEAVE TREAD SIZE | OVERALL DIMENSIONS | COLOR | NFPA RATING | 3 SIGMA MBS |
|---|---|---|---|---|---|---|---|---|

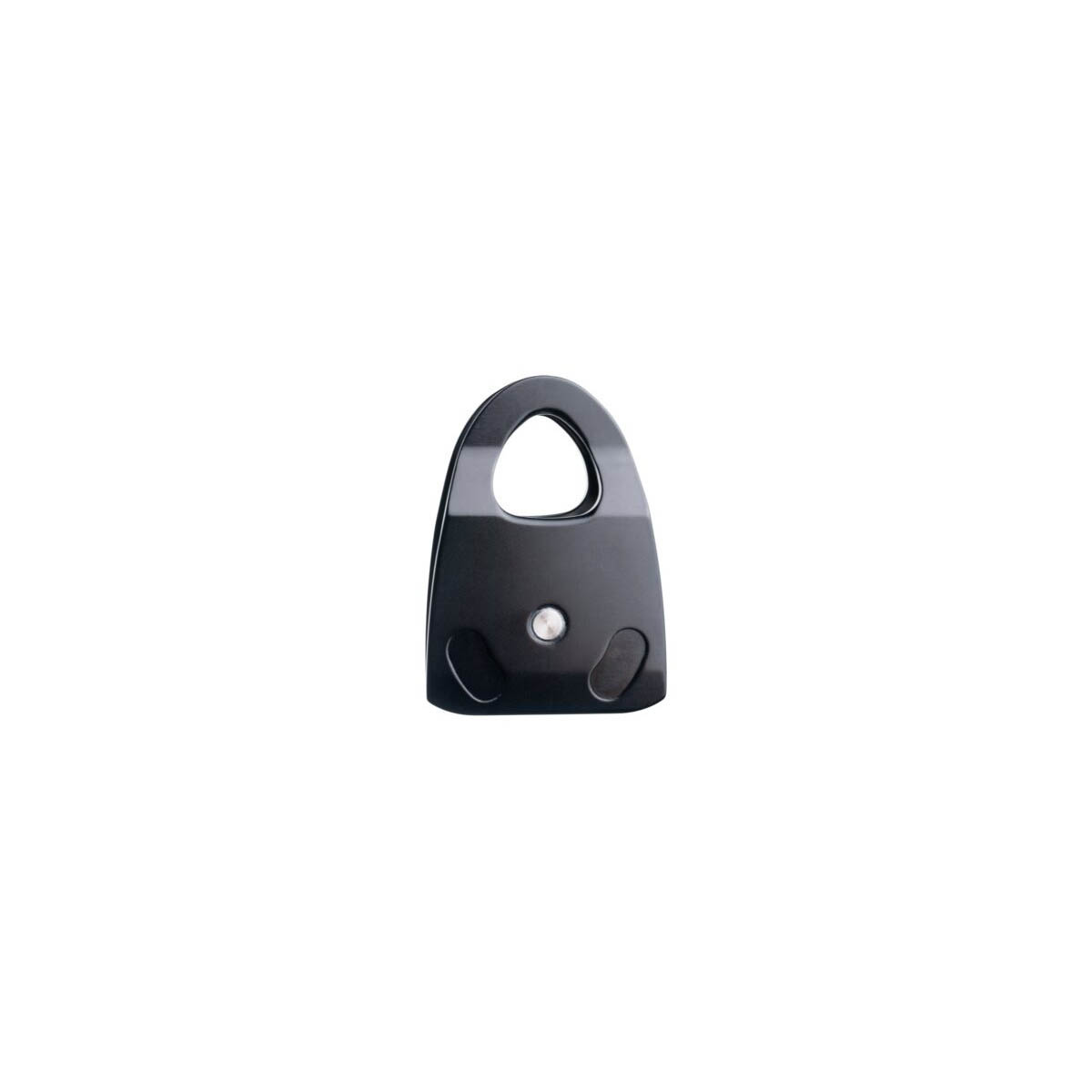

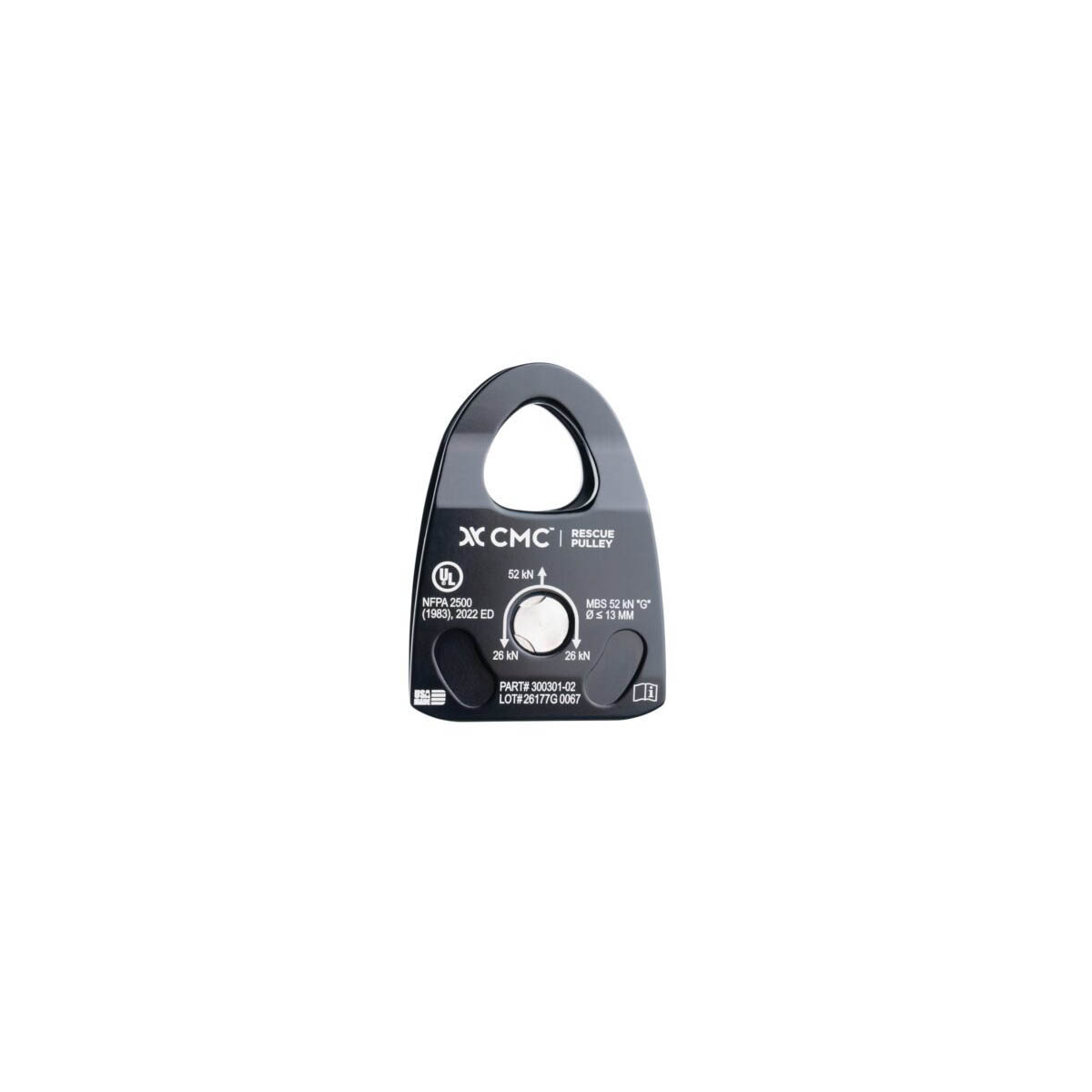

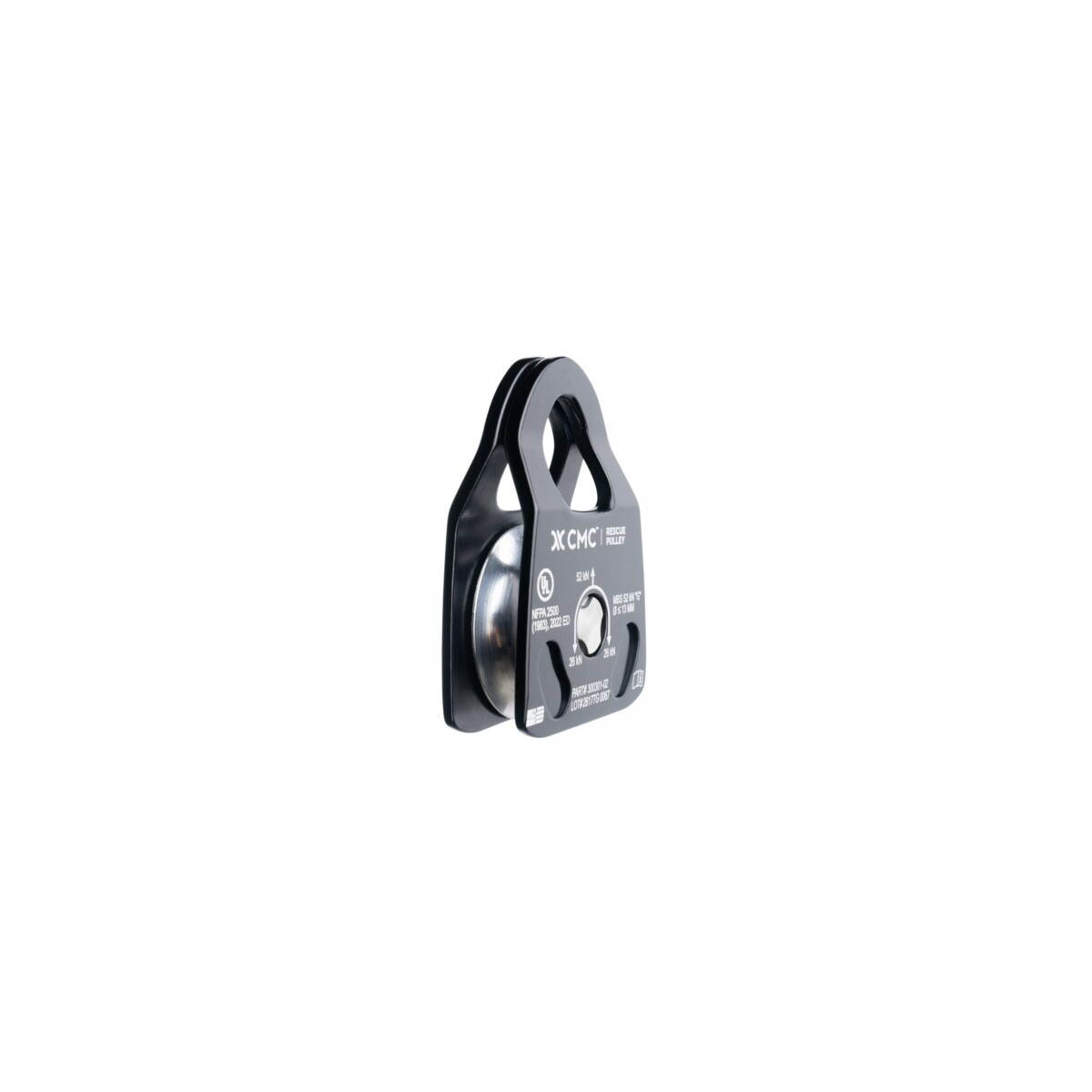

| Single Rescue Pulley | 300301 | SINGLE SHEAVE | 145 G (5.1 OZ) | 38 X 13 MM (1.5 X .5 IN) | 8.9 X 6.4 X 1.9 CM (3.5 X 2.5 X .75 IN) | RED | GENERAL USE | 52 KN (11,690 LBF) |

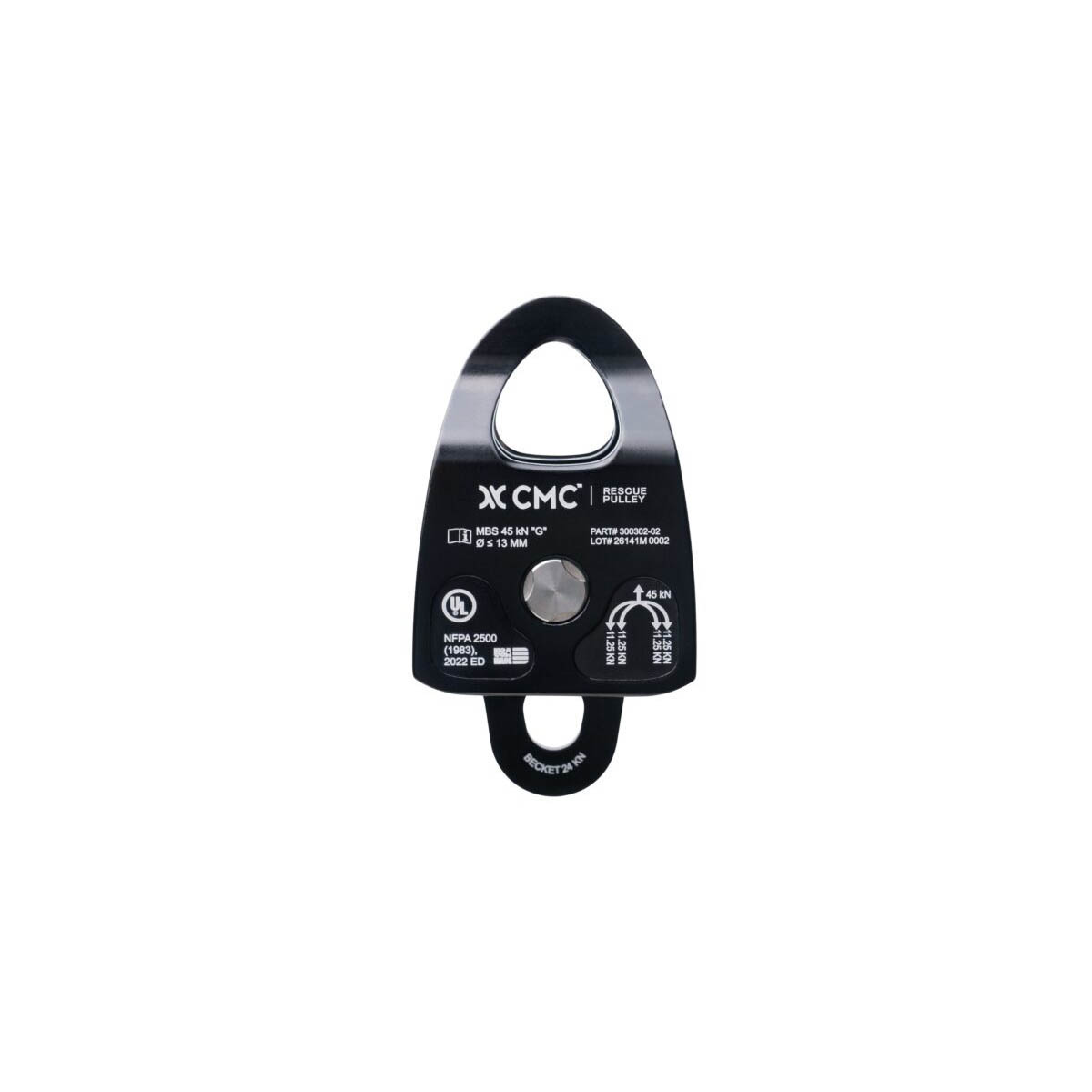

| Double Rescue Pulley | 300302 | DOUBLE SHEAVE | 249 G (8.8 OZ) | 38 X 13 MM (1.5 X .5 IN) | 11.4 X 6.4 X 5.1 CM (4.5 X 2.5 X 2 IN) | BLACK | GENERAL USE | 45 KN (10,116 LBF) |
Additional information
| Weight | N/A |
|---|---|
| Type | Single, Double |
